Presse universelle MecaMotion par
Hardware supplied with the press
In table 1 below, you will find all the hardware supplied with the universal press.
Component |
Description |
Representation |
|---|---|---|

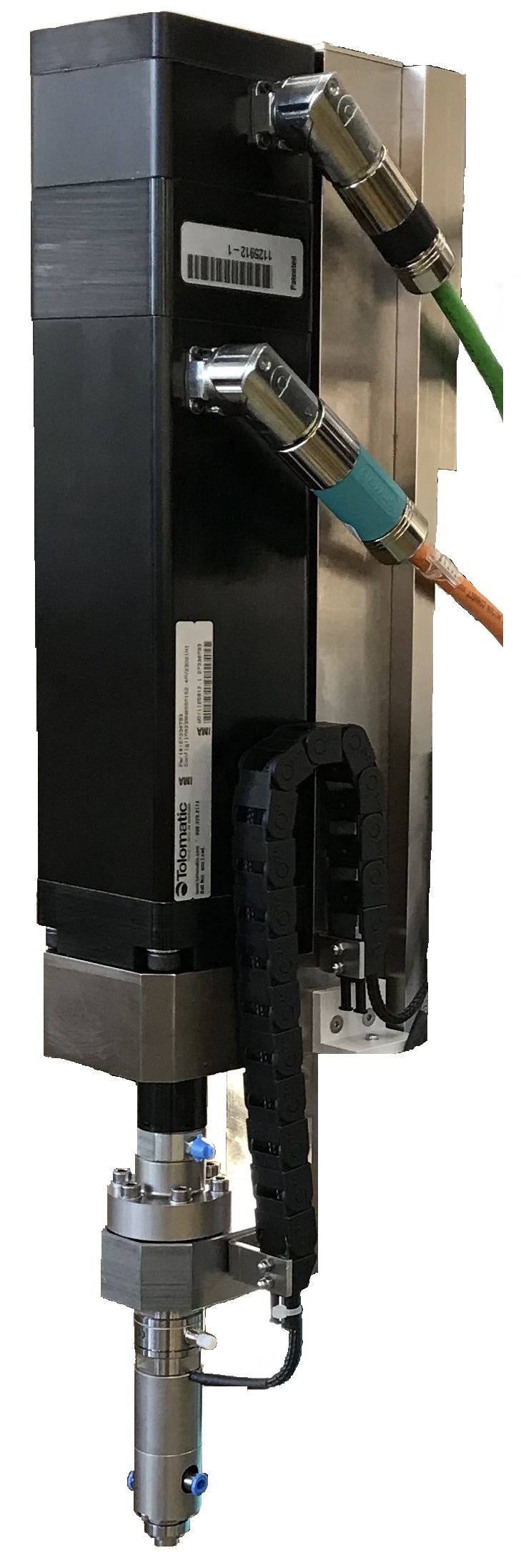

Servopress |
Press motor |
|

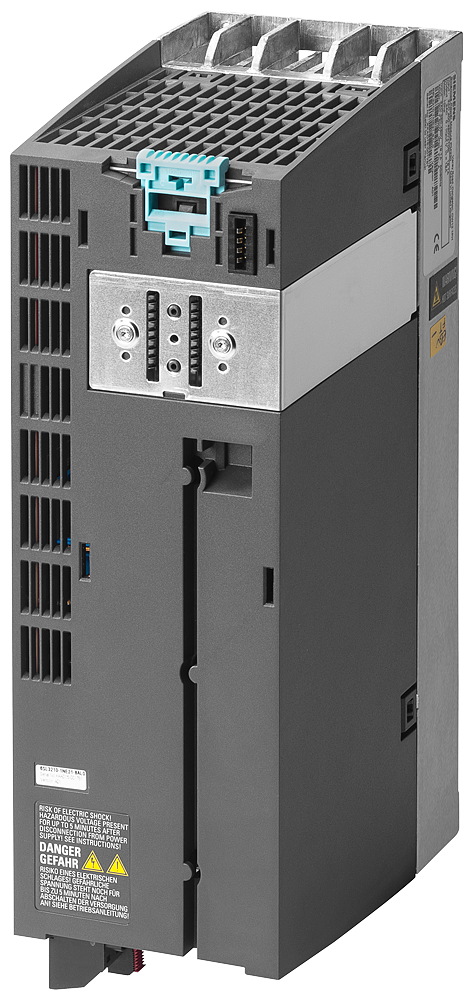

PM240-2 |
Power module (Drive) |
|
D410-2 |
Press control unit |
|
Flash card |
1GB flash card containing the firmware |
|
Power cable |
Motor power supply cable |
|
Drive-CliQ cable |
Drive-CliQ encoder cable |
|
CD-ROM |
CD-ROM containing:
•MecaMotion platform for press programming •GSDML file to insert the press into a PROFINET network •Block diagram of the press wiring (PDF format)
|
|
Table 1: List of material provided with the press
Options
In the table 2, you will find the optional hardware of the universal press.
Component |
Description |
Representation |
|---|---|---|
SME25 |
Encoder converter ENDAT -> Drive-CliQ for motors that do not have a Drive-CliQ connection |
|
Encoder cable |
Cable for encoder type ENDAT |
|
Optical ruler |
Optical ruler for linear measurement of the axis position |
|

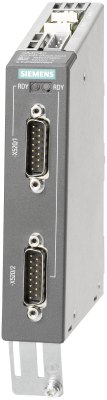

SMC40 |
Module for processing external encoders ENDAT 2.2 for optical ruler |
|
Table 2: List of optional hardware
