"Assignment" instruction
This instruction is used to assign a value to a user variable.

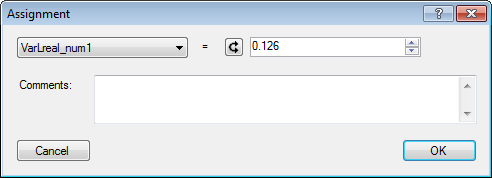

Figure 1: Example of using an assignment in the part-program
Below is a list of the instruction's input and output parameters:
Parameter name |
Declaration |
Type of data |
Default value |
Description |
|---|---|---|---|---|
Variable to be assigned |
Output |
REAL, LREAL, INT or DINT |
-- |
Variable to be assigned |
Assignment value |
Input |
REAL, LREAL, INT or DINT |
0 |
Assignment value (variable or constant) |
Table 1: List of instruction parameters
The user variable formats that can be assigned are as follows:
•INT (16 bits)
•DINT (32 bits)
•REAL (32 bits floating)
•LREAL (64 bits floating)
As shown in figure 2, you can assign a variable from one format to a variable from another format.
Figure 2: Assigning an INT variable to a LREAL variable
